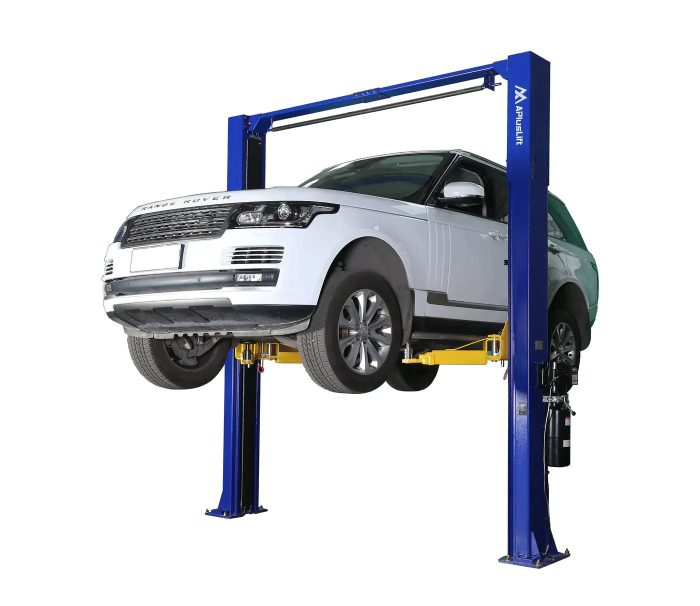

The APlusLift HW-10KOH is a highly affordable overhead car lift (auto hoist) with an impressive 10,000 lb capacity, designed with durable double “S” columns for added strength and stability.
Specifications:
- Overall Height: 143 3/16″
- Overall Width: 134 5/16″
- Lifting Height Without Truck Adapters: 75″
- Lifting Height With Truck Adapters: 81″
- Minimum Arm Height: 4.5″
- Drive Through Width (Carriage to Carriage): 100″
- Column to Column Width: 109″
- Column Cross Section: 11″L x 7″W
- Driving Mode: Dual hydraulic cylinders with chain drive
- Motor: 220V Single Phase 3HP (requires 30A breaker)
- Hydraulic Oil: 3-5 gallons AW32/AW46
- Time to Full Rise: 50 sec
- Arm Assembly: Combo (Symmetrical and Asymmetrical)
- Front/Rear 3-Stage Reach: 22 7/8″ to 42 5/8″
- Rear 2-Stage Reach: 33 5/8″ to 52 7/8″
- Adjustable Screw Pads: 4 pieces included
- Truck Adapters: 4 pieces included
- Concrete Requirement: 6″ at 3500psi (4″ for vehicles under 9000 lbs)
- Included Accessories: Anchor bolts, tool trays, and toe guards
- Column Steel Thickness: 13/64″
- Carriage Steel Thickness: 15/64″
- Arm Steel Thickness: 15/64″
- Carriage Yoke Thickness: 5/16″
- Base Plate Steel Thickness: 5/8″
Features:
- CE Certified Lift Structure and Hydraulic System
- Carriage material made of Q355 (ASTM A572) steel, stronger than standard Q235 steel
- Built-in relief valve in the power pump to prevent overloading
- Automatic arm lock restraints for safety
- Door guards protection with rubber lining
- Up-limit switch to protect cylinders and maintain safe working stroke
- Heavy-duty 3/8″ diameter cables and 5″ pulleys to reduce high stress during synchronization and extend cable life
